LC LED-N255TWG2H:
Rectangular White & Green LED (110 Degree)
2mmx5mmx5mm White and Green Rectangular LED 110 Degree
Milky 2 PIN
|
PRODUCT DESCRIPTION |
|
|
(1) RoHS Compliant
Part |
(4) Moisture &
UV Resistance Epoxy Len |
|
(2) 2 Lead
Rectangular White & Green LED |
(5) High Bright
Indicator LED Lamp |
|
(3) Excellent color
mixing characteristics |
(6) Rugged design suitable
for both indoor & outdoor use |
Absolute Maximum Rating
(Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
DC Forward Current |
30 |
mA |
|
Peak Pulse Forward Current (1) |
100 |
mA |
|
Avg. Forward Current |
30 |
mA |
|
Operating Temperature |
-40
to +85 |
0C |
|
Storage Temperature |
-40
to +100 |
0C |
|
Lead Soldering Temperature |
2600C for 3 seconds |
|
(1) Pulse width of
1/10 duty and 0.1msec width, for long operating life, max. of 20mA recommended
Electro-optical Characteristics
(Ta = 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
Forward
Voltage (White) |
VF |
IF
= 20mA |
2.8 |
|
3.5 |
V |
|
Forward
Voltage (Green) |
VF |
IF
= 20mA |
2.8 |
|
3.5 |
V |
|
Reverse
Voltage |
VR |
IR
= 100mA |
|
|
5 |
V |
|
Dominant Wavelength
(White) |
lD |
IF
= 20mA |
520 |
|
525 |
nm |
|
Dominant
Wavelength (Green) |
lD |
IF
= 20mA |
6500 |
K |
||
|
Viewing Angle |
2q1/2 |
IF
= 20mA |
|
110 |
|
Deg. |
|
Luminous
Intensity (White) |
IV |
IF
= 20mA |
1,000 |
|
2,000 |
mcd |
|
Luminous
Intensity (Green) |
IV |
IF
= 20mA |
1,000 |
|
2,500 |
mcd |

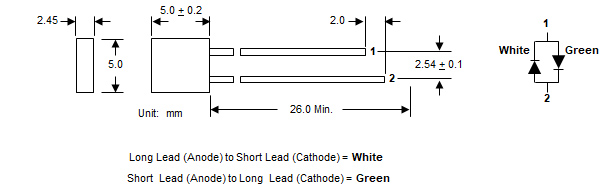

DEVICE DRAWING
|
